Restoring your analog synthesizer to its original patch is a great way to craft unique sound designs from the base up. It can also help a user enhance their knowledge of the instrument, especially in the early days of using it. A lot of analog synthesizers lack the ability to save presets, and therefore will not have a recallable initial preset to revert to. Below are some initial patch templates for a range of Moog semi-modular synthesizers. Simply copy the template to restore the synth to it's "initial" setting.


Have fun experimenting!


TABLE OF CONTENTS

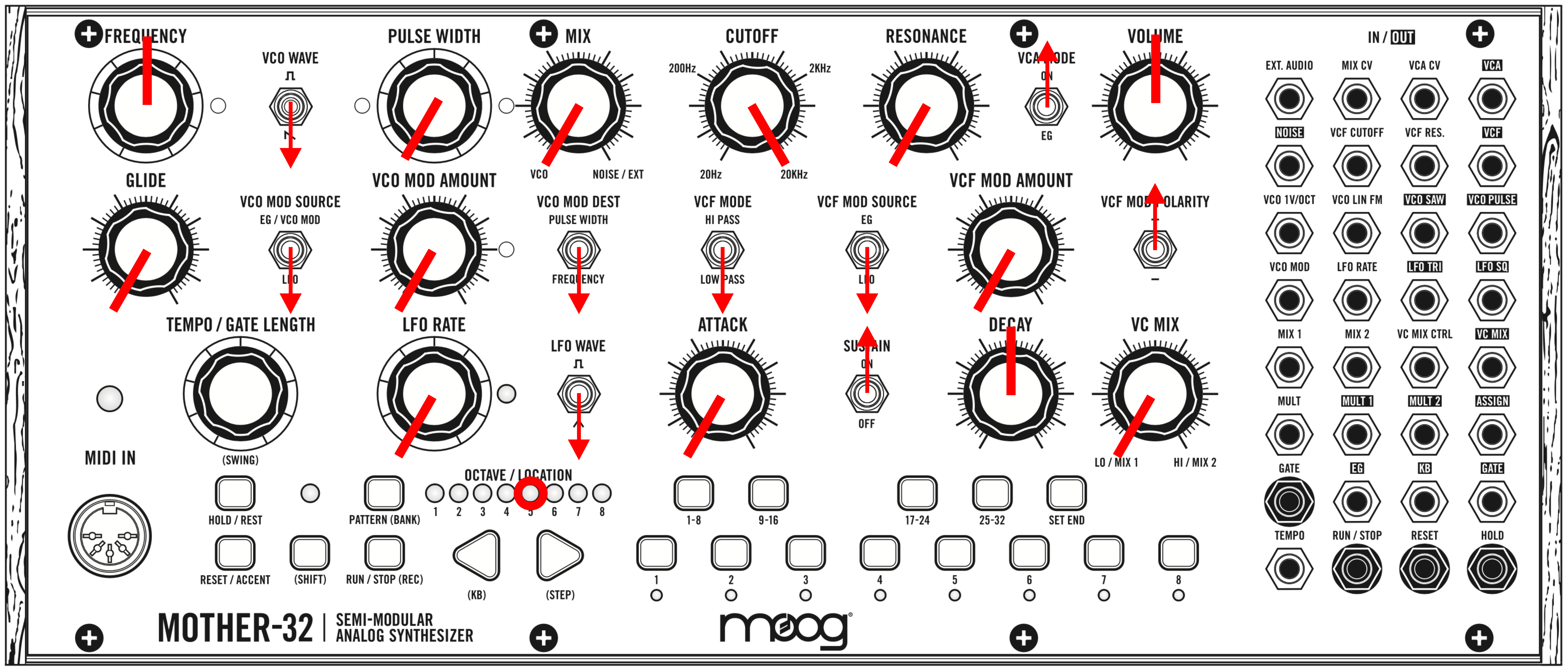

Moog Mother-32 - Semi-Modular Analog Synthesizer

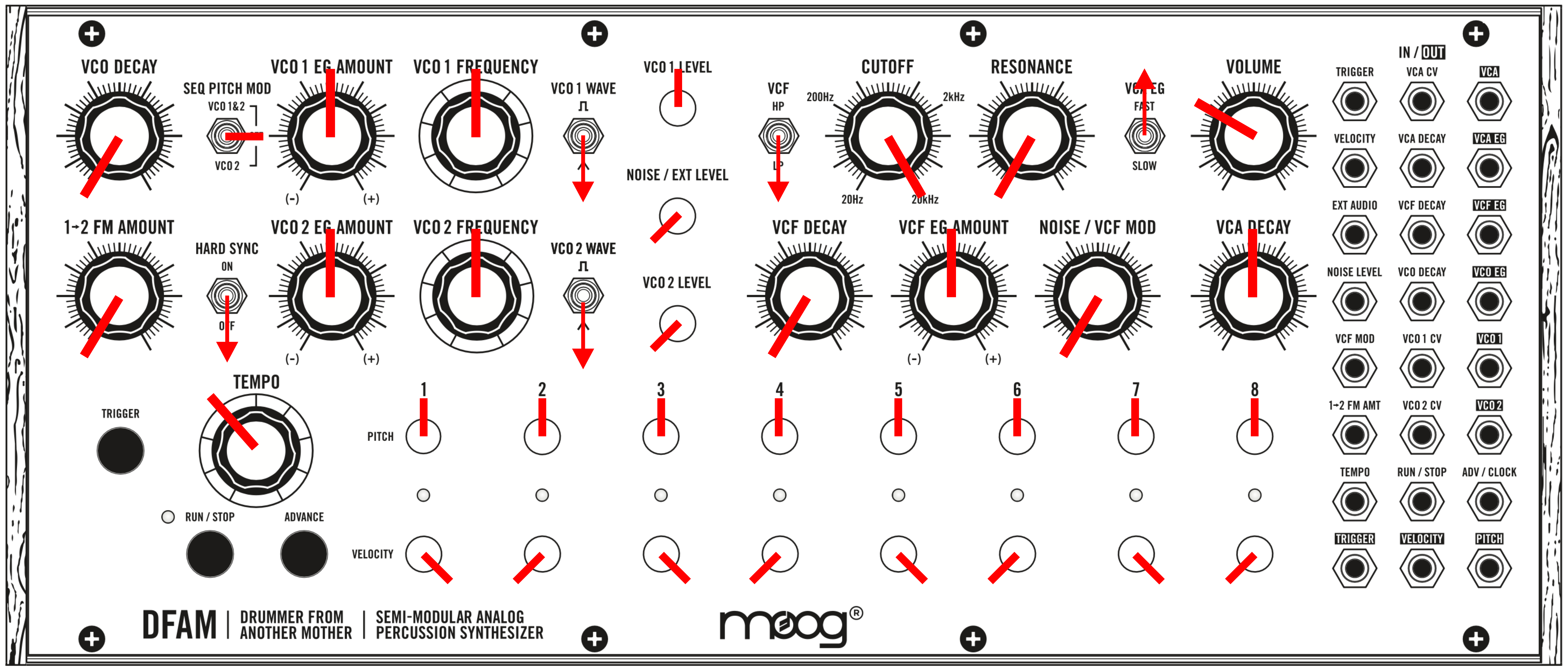

Moog DFAM (Drummer from another Mother) - Semi-Modular Analog Percussion Synthesizer

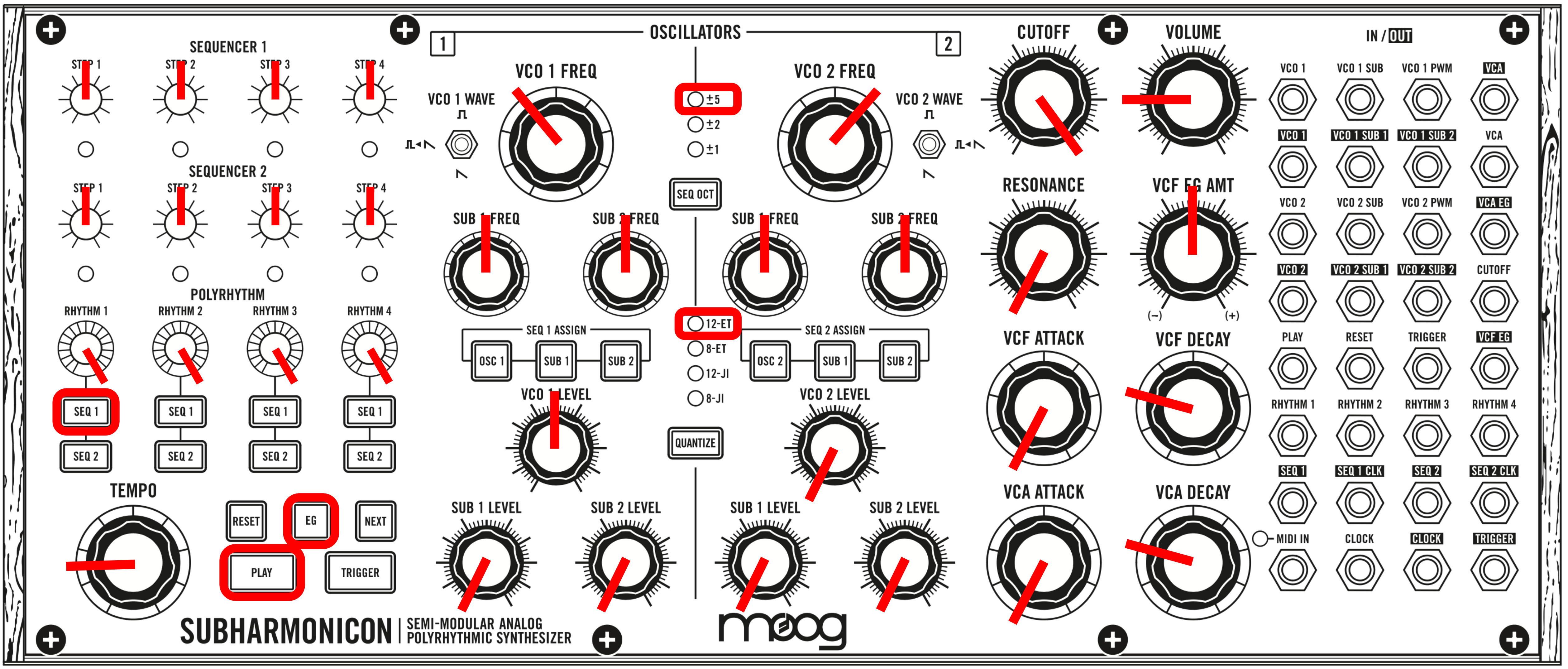

Moog Subharmonicon - Semi-Modular Analog Polyrhythmic Synthesizer

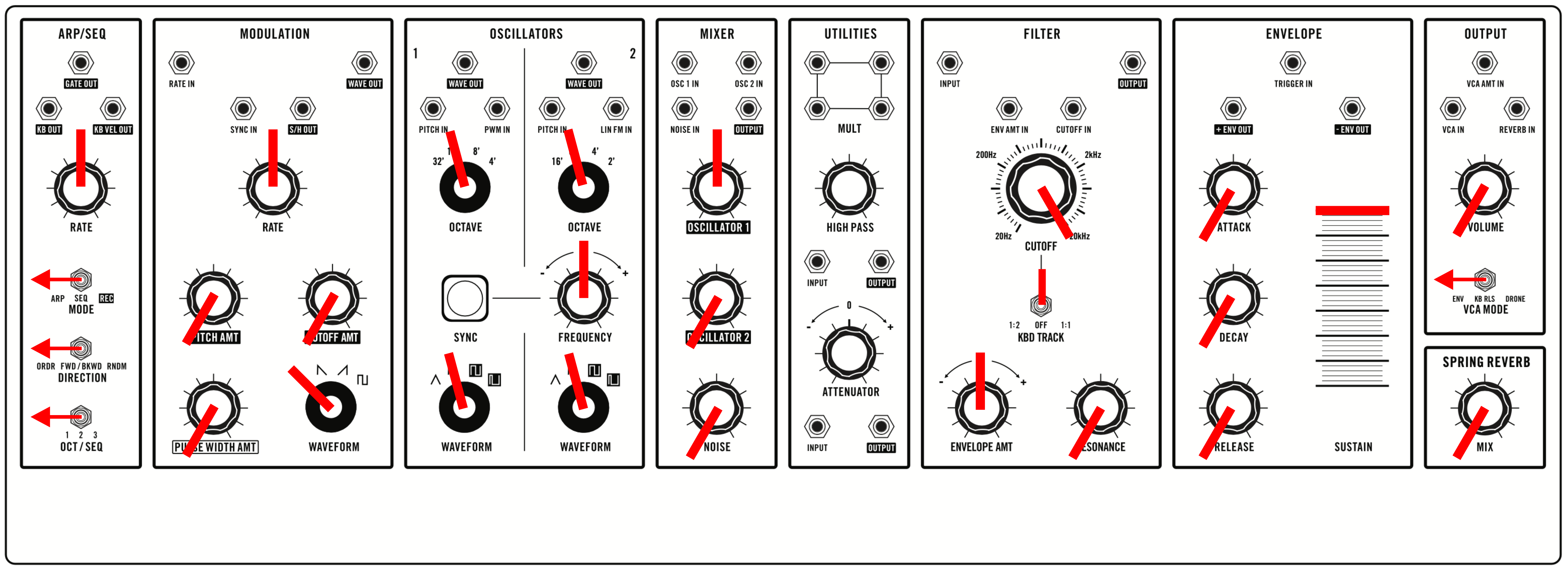

Moog Grandmother - Semi-Modular Analog Synthesizer

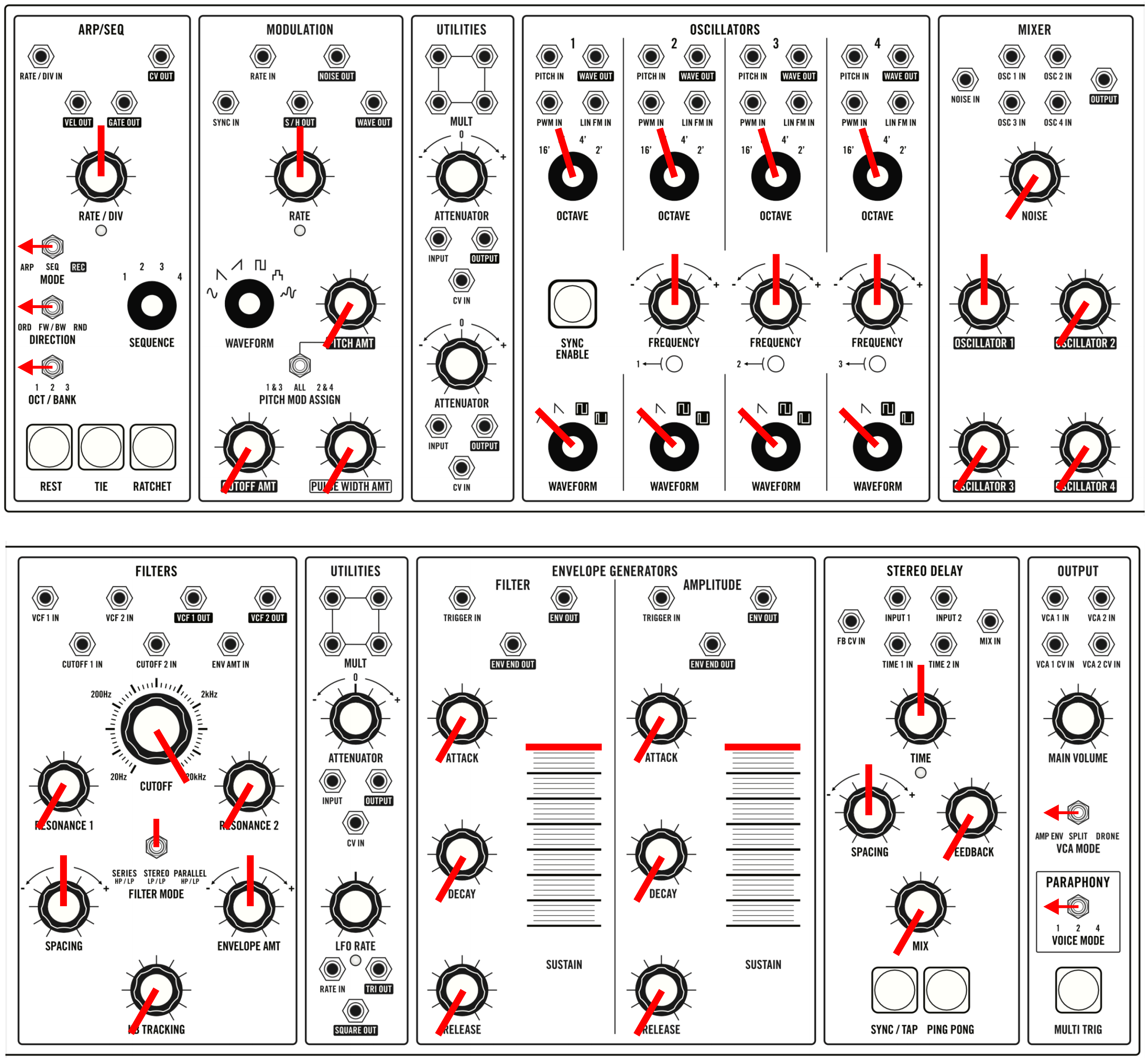

Moog Matriarch - Semi-Modular 4-note Paraphonic Analog Synthesizer

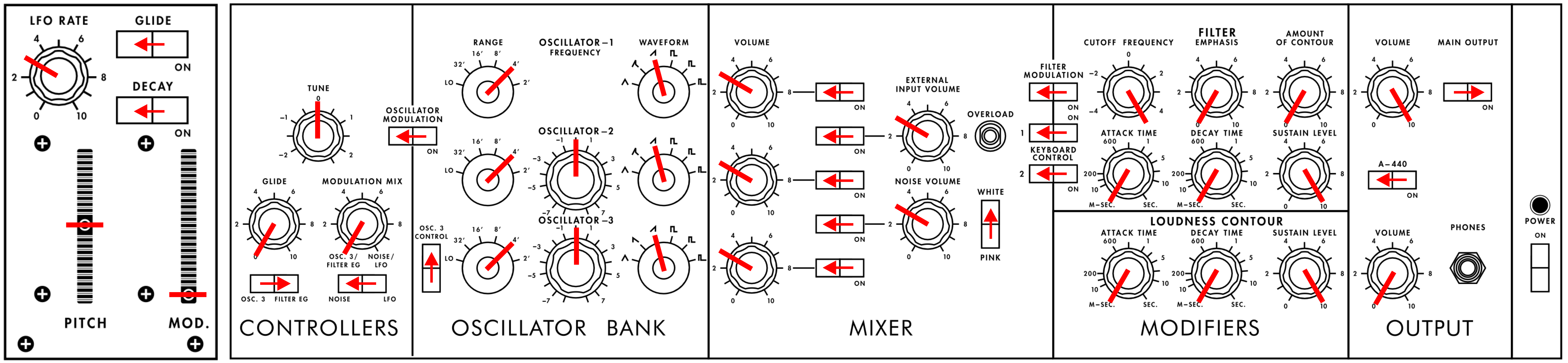

Moog Minimoog Model D - Analog Monophonic Synthesizer
